If your Audi is showing ABS, ESC / traction control, or brake system warning lights, and a diagnostic scan shows fault code C123EF0, the fault is commonly linked to the ABS / ESP pump module and the vehicle’s hydraulic brake booster assistance system.

At Essex Recons, we offer a specialist repair service for this ABS fault, helping customers avoid the high cost, coding risk and compatibility problems of fitting a brand-new or second-hand ABS unit.

What does C123EF0 mean?

The full fault description is commonly:

C123EF0 — Hydraulic Brake Booster: Limit Value Reached
Also described as: Hydraulic brake servo limit reached

In plain English, the ABS control unit has detected that hydraulic brake boost compensation has been used too many times. This usually happens after repeated brake assistance issues caused by the brake booster vacuum system, pressure sensor, vacuum pump, non-return valve, pipework or brake servo.

Once the module reaches its internal limit, C123EF0 can become a fault that will not simply clear with a diagnostic tool.

Common symptoms of C123EF0 / C123EFO

Safety note: if the brake warning is red, the pedal feels hard, or the vehicle displays a stop warning, do not continue driving unnecessarily. Braking system faults should be checked immediately.

C123EF0 or C123EFO — which is correct?

The correct code is normally C123EF0, with a zero at the end. Many drivers and garages type it as C123EFO using the letter “O”. For search and diagnostic purposes, both usually refer to the same issue: Hydraulic Brake Booster — Limit Value Reached.

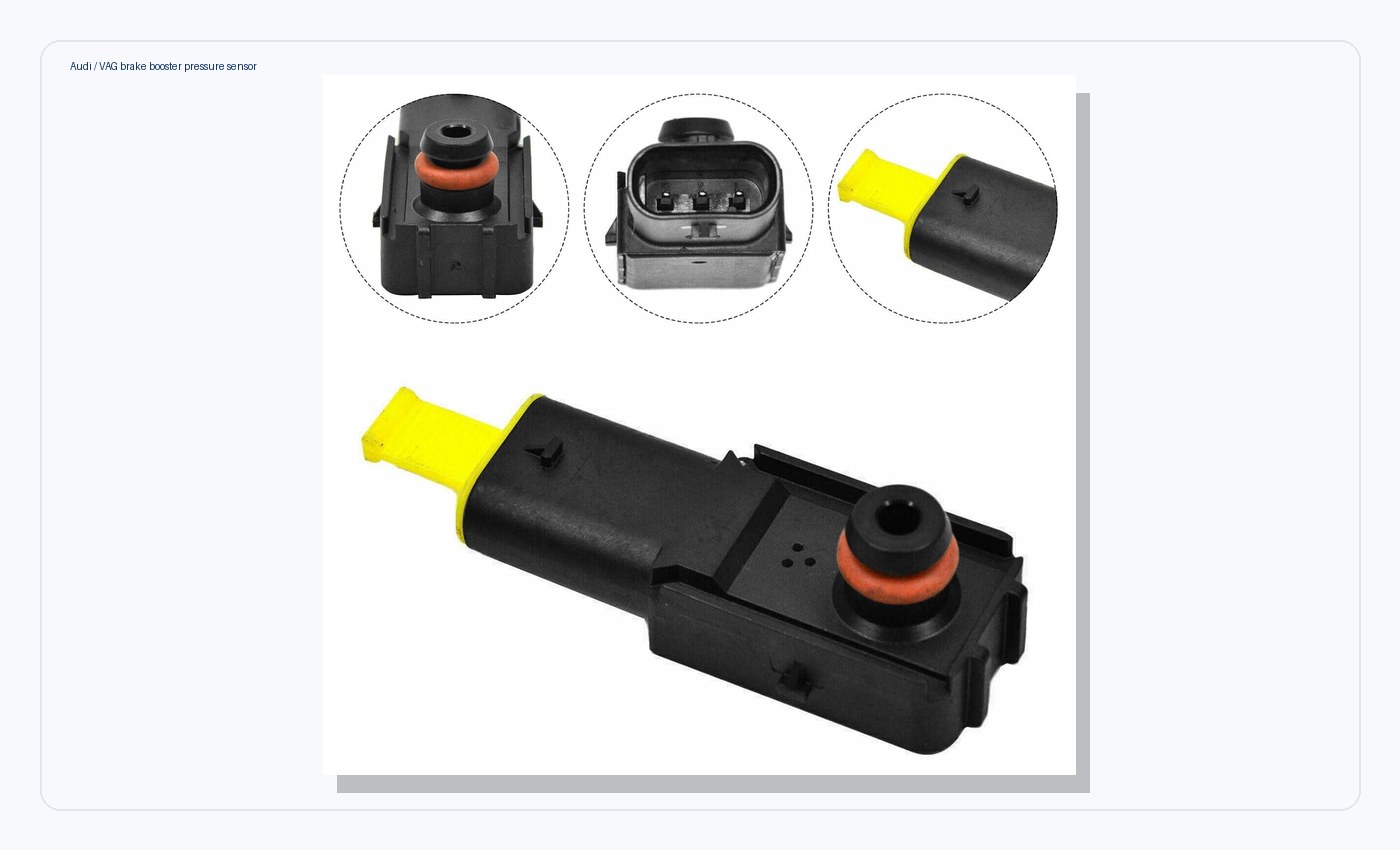

One of the key vehicle-side components to check is the brake booster pressure sensor, as sensor or vacuum faults can trigger related warnings before the ABS module stores C123EF0.

What causes C123EF0?

C123EF0 is often the final fault after an earlier vacuum or brake booster problem has been ignored, missed or misdiagnosed.

Possible cause	What it means
Brake booster vacuum leak	Split hose, faulty pipe, leaking non-return valve, or brake servo issue.
Faulty brake booster pressure / vacuum sensor	Incorrect pressure readings being sent to the ABS module.
Weak or failing vacuum pump	Insufficient vacuum supply for proper brake assistance.
Brake booster / servo issue	The brake servo may not be holding or supplying assistance correctly.
Repeated Hydraulic Boost Compensation	The ABS module repeatedly steps in to assist braking until its limit is reached.
Fault ignored for too long	The module reaches its internal activation limit and logs C123EF0.

What is Hydraulic Boost Compensation?

Modern Audi and Volkswagen Group vehicles monitor the brake booster system closely. If normal brake assistance is reduced — for example because of low vacuum — the ABS / ESP system can activate a backup strategy called Hydraulic Boost Compensation, often shortened to HBC.

HBC can help maintain braking assistance temporarily, but it is not designed to run repeatedly forever. The ABS control unit counts these events. Once the limit is reached, the module stores C123EF0 — Hydraulic Brake Booster Limit Value Reached.

Why the fault often will not clear

Many garages try to clear C123EF0 and find that the code comes straight back, the warning lights remain on, or the ABS module reports a permanent/static fault. This happens because C123EF0 can be stored after the ABS unit has reached its internal limit for brake boost compensation events.

Vehicles commonly affected

This fault is commonly seen on Audi and other Volkswagen Group vehicles fitted with Bosch ESP / ABS systems, including many Bosch 9.0 / ESP9-family modules.

• Audi A4 / S4 B9
• Audi A5 / S5
• Audi A6
• Audi A7
• Audi A8
• Audi Q5 / SQ5
• Audi Q7 / SQ7
• VW Touareg
• Porsche Cayenne
• Some related Volkswagen Group platform vehicles

Common module or part number families include 8W0 907 379, 8W0 614 517, 4M0 907 379, 4M0 614 517, 4K0 907 379 and 80A 907 379. Always confirm the actual part number from the ABS unit label or diagnostic scan.

Can C123EF0 be fixed without replacing the ABS pump?

In many cases, yes. Dealer-level guidance often points towards replacing the ABS unit, but that can be expensive and may involve coding, programming, availability delays and compatibility issues.

Relevant Essex Recons C123EF0 repair services

If your ABS unit matches one of these common applications, use the relevant Essex Recons repair page below. If your exact model or part number is not listed, contact us with the ABS module number and diagnostic fault code.

The vacuum fault must also be fixed

This is the part many garages miss. Repairing the ABS unit alone is not enough if the original cause remains on the vehicle.

Before or during the ABS repair process, check:

• Brake booster vacuum pipework
• Non-return / check valve
• Vacuum pump output
• Brake servo / booster condition
• Brake booster pressure or vacuum sensor
• Related fault codes such as P050F00 or C11EC04

Our C123EF0 repair process

1. Identify the ABS module — confirm part number and vehicle application.
2. Confirm the reported fault — C123EF0 / C123EFO / Hydraulic Brake Booster Limit Value Reached.
3. Inspect and test the ABS module — check for internal electronic or pump/module faults.
4. Carry out specialist repair — repair the affected ABS module where viable.
5. Return the original unit — the same module is refitted to the vehicle.
6. Vehicle-side checks — the brake booster vacuum/sensor issue must be repaired to prevent repeat failure.

Why not fit a second-hand ABS module?

A used ABS pump may look like a cheap solution, but it can create more problems than it solves. Second-hand ABS modules may have incorrect coding, software mismatch, different suffix/calibration, component protection issues, unknown mileage, or the same developing fault.

For C123EF0, it is normally better to repair the vehicle’s original unit where possible.

Related fault codes to check

Fault code	Description
C123EF0	Hydraulic Brake Booster — Limit Value Reached
P050F00	Brake Booster Vacuum Too Low
C11EC04	Pressure Sensor for Brake Booster
C123E	Hydraulic Brake Booster / servo limit related fault

Relevant Essex Recons C123EF0 ABS pump repair services

For this fault, choose the repair page that matches the vehicle and ABS pump family, or contact us with the part number from the unit label.

Frequently asked questions

What does C123EF0 mean on an Audi?

C123EF0 means Hydraulic Brake Booster Limit Value Reached. The ABS / ESP module has detected repeated brake boost compensation events, often caused by a vacuum, brake booster, or sensor issue.

Is C123EFO the same as C123EF0?

Usually, yes. The correct code is normally C123EF0, with a zero at the end. Many people type it as C123EFO, using the letter O.

Can the C123EF0 fault code be cleared?

Often, no. Once the ABS module has reached its internal limit, the fault may not clear with normal diagnostic equipment. The ABS module usually needs specialist repair or replacement, and the underlying vacuum / booster issue must also be fixed.

Does C123EF0 mean I need a new ABS pump?

Not always. Dealers may recommend replacing the ABS unit, but a specialist repair of your original ABS pump/module is often possible and can be more cost-effective.

What causes C123EF0 to return after repair?

The most common reason is that the original brake booster vacuum problem was not fixed. If the vacuum sensor, vacuum pump, brake booster, hoses, or check valve are still faulty, the ABS system can be forced back into compensation mode.

Page reviewed and expanded by Essex Recons on 1 July 2026 to include clearer C123EF0 repair guidance, vehicle-side checks and direct repair-service links.
