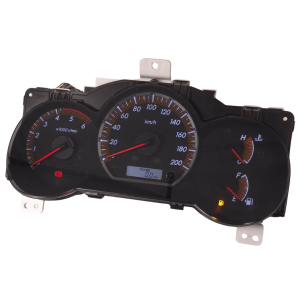

Toyota Hilux Instrument Cluster (2005–2016) – Common Faults and Symptoms
The instrument cluster in the Toyota Hilux (2005–2016) provides drivers with vital information such as speed, fuel level, and warning indicators. When this unit develops a fault, it can cause inaccurate readings that affect everyday driving. One of the most common issues is the fuel gauge displaying incorrect information, which can leave drivers uncertain about the vehicle’s remaining fuel level and potentially lead to running out unexpectedly.
Common Faults:
Fuel gauge reading inaccurate
Common Toyota Hilux Instrument Cluster (2005–2016) Faults and Symptoms
The instrument cluster in the Toyota Hilux (2005–2016) is a vital component that provides the driver with key information such as speed, fuel level, and warning lights. Over time, these units are known to develop faults that can cause unreliable readings and make day-to-day driving more difficult. The most common problem seen in these instrument clusters is inaccurate fuel gauge readings.
Fuel Gauge Reading Inaccurate
One of the most frequent complaints from Hilux owners is that the fuel gauge does not display the correct fuel level. In some cases, the gauge may show empty when the tank still contains fuel, or it may fail to register a full tank after refuelling. This fault is typically the result of internal issues within the instrument cluster circuitry rather than a problem with the fuel sender unit. Left unresolved, this can cause unnecessary worry for the driver and may even lead to unexpectedly running out of fuel.
These instrument cluster faults are commonly reported on Toyota Hilux models manufactured between 2005 and 2016 and generally require specialist repair to restore accurate operation.
Affected Part Numbers
Common instrument cluster part numbers affected on Toyota Hilux (2005–2016) models include (but are not limited to):
83800-FAU20-A, 83800FAU20A, 83800-FAU31, 83800FAU31, 83800FAU21, 83800-FAU21, 83800FAU70A, 83800-FAU70-A, 83800FAU71, 83800-FAU71, 83800FAP71, 83800-FAP71, 83800FAP71A, 83800-FAP71-A, 83800FAT70, 8380-0FAT70, 83800F0W90D, 83800-F0W90-D, 83800-FC580, 83800-0KU02-B, 83800-FAP40, 838007AP70, BFD049940, 83800-0KJ70, 83800-F0X20
If your part number isn’t listed above, your unit may still be affected as multiple variations of the Hilux instrument cluster were fitted during this period.
Toyota Hilux Instrument Cluster Repair – Essex Recons
At Essex Recons, we specialise in repairing Toyota Hilux instrument clusters suffering from inaccurate fuel gauge readings and other related faults. Our experienced technicians carry out component-level repairs and testing to restore the cluster to full working order, saving you the cost of an expensive replacement. Every unit is thoroughly tested before return and supplied with warranty for your peace of mind.
If your Toyota Hilux (2005–2016) is affected by instrument cluster problems, contact Essex Recons today for a fast, professional, and cost-effective repair service.
Affected Vehicles - Shop Now
Common Questions:
We at Essex Recons strive to exceed your expectations in the quality of our repairs. We aim to complete our repairs in a timely fashion while adhering to all ESD safety measures when working on sensitive equipment.
These units come with a lifetime* warranty.
To pay for the rebuild, simply click the product link above to select the module you require. After that, place your order directly through our website. Once your order is complete, carefully package your unit inside a sturdy box with plenty of protective material. In addition, make sure you include your contact details and order number inside the box. Then, send your package to us using a tracked courier service. As soon as we receive your unit, we will test, rebuild, and return your module, complete with your warranty.
Yes! Once an order has been placed you can drop your unit off at the following address: Unit H, OYO Business Units, Hindmans Way, Dagenham, Essex, RM9 6LN, UK. Quote your order number at the till to ensure a smooth dropoff!
