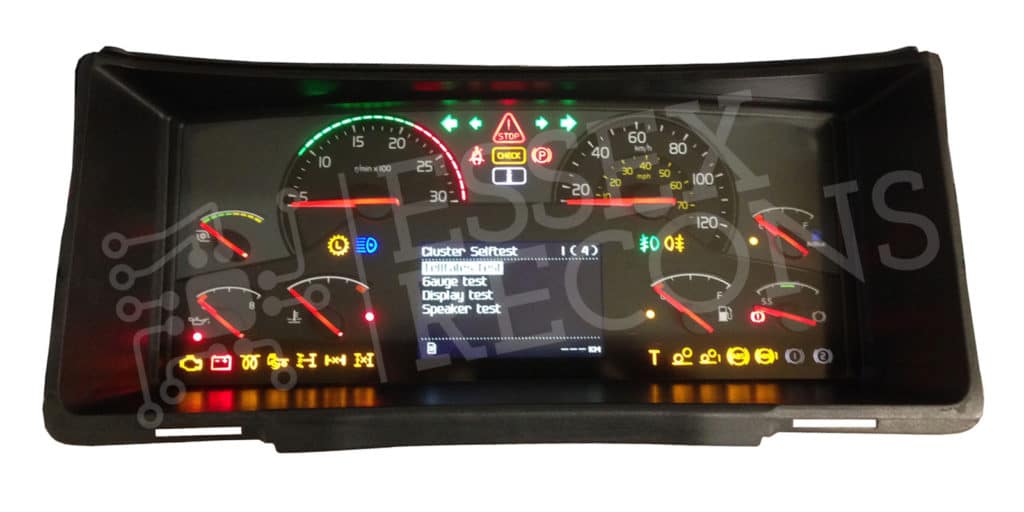

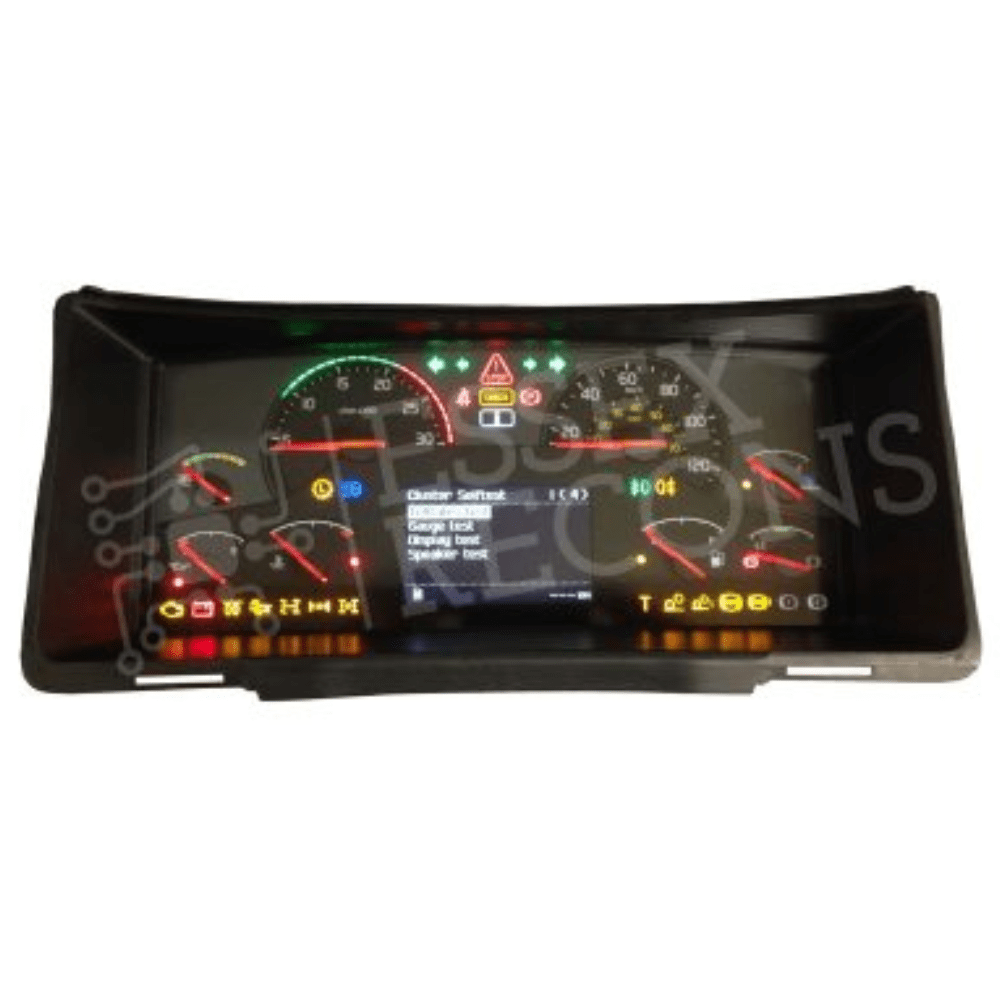

Volvo FH FM Dashboard Instrument Cluster Repair Service
Even though the components in these Volvo Trucks’ clusters are designed for automotive use, the dashboards are typically past their design life after just a few years.
An intermittent air gauge failure is the most common issue with the instrument cluster. It will trigger a warning buzzer, and the needle will drop. The problem often comes and goes, usually triggered by driving over a bump.
Common Faults Codes:
- PID:118 FMI:4 Secondary brake pressure short low
- PID:117 FMI:4 Primary Brake pressure short low
- SID:250 FMI:12 J1708 datalink defective upon request
- PSID 205, 204, 208, 207 FMI 12 Data link errors upon request
- PSID 200 FMI 9 Engine ECU data link abnormal update rate upon request
Common Faults:
- Green indicator tell-tales not functioning
- No audible warning
- Sticking needles
- Inaccurate needles
- Non-functioning gauges
- Air leaking from the air gauge on earlier models
At Essex Recons every dashboard instrument is thoroughly tested at a fraction of the price of a new unit. During the rebuild we make sure to engineer-out the deep-rooted causes to ensure it never fails again.
